CTMS Heat-shrinkable marker sleeves

CTMS Heat-shrinkable marker sleeves

KOSOO CTMS

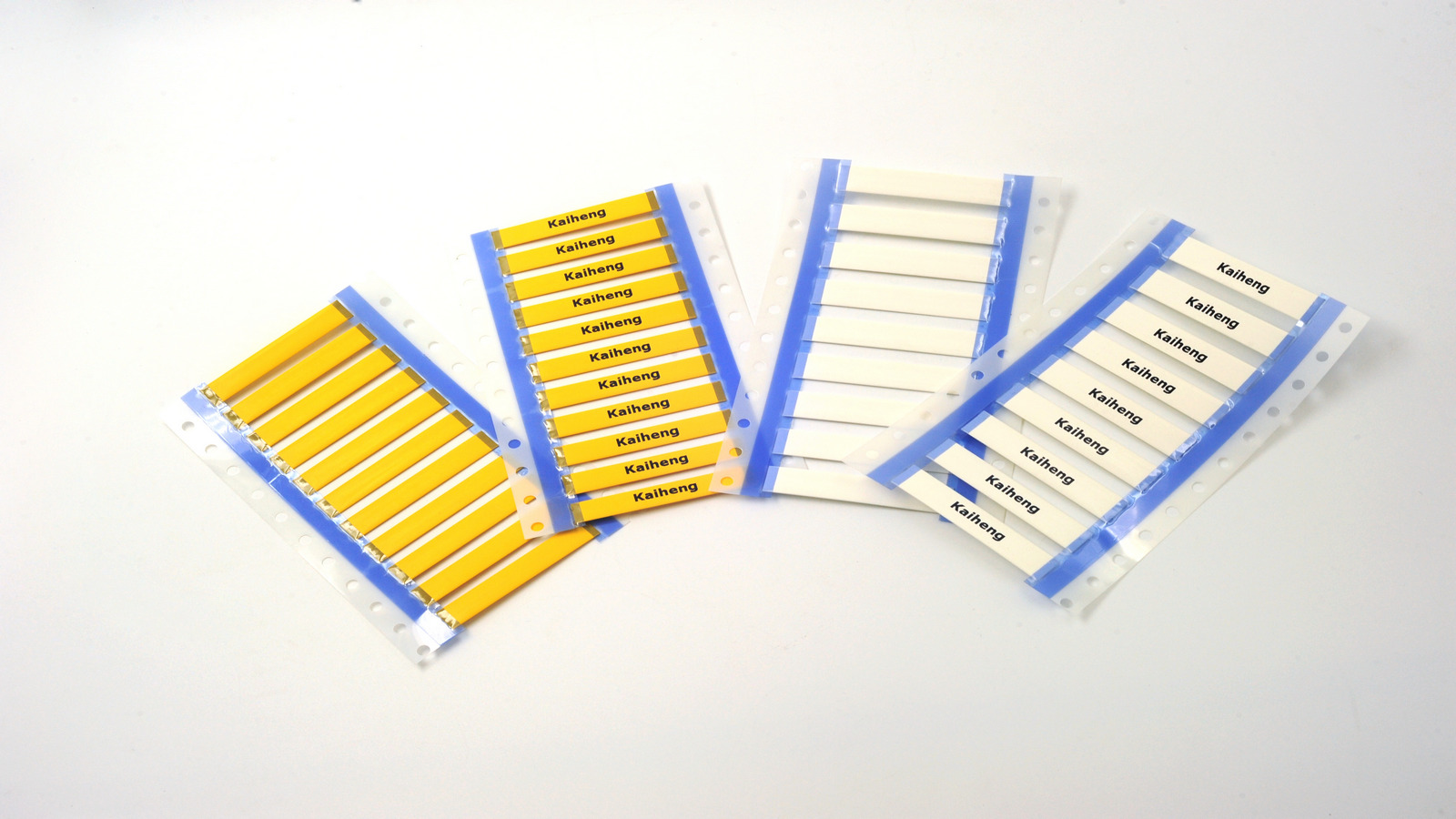

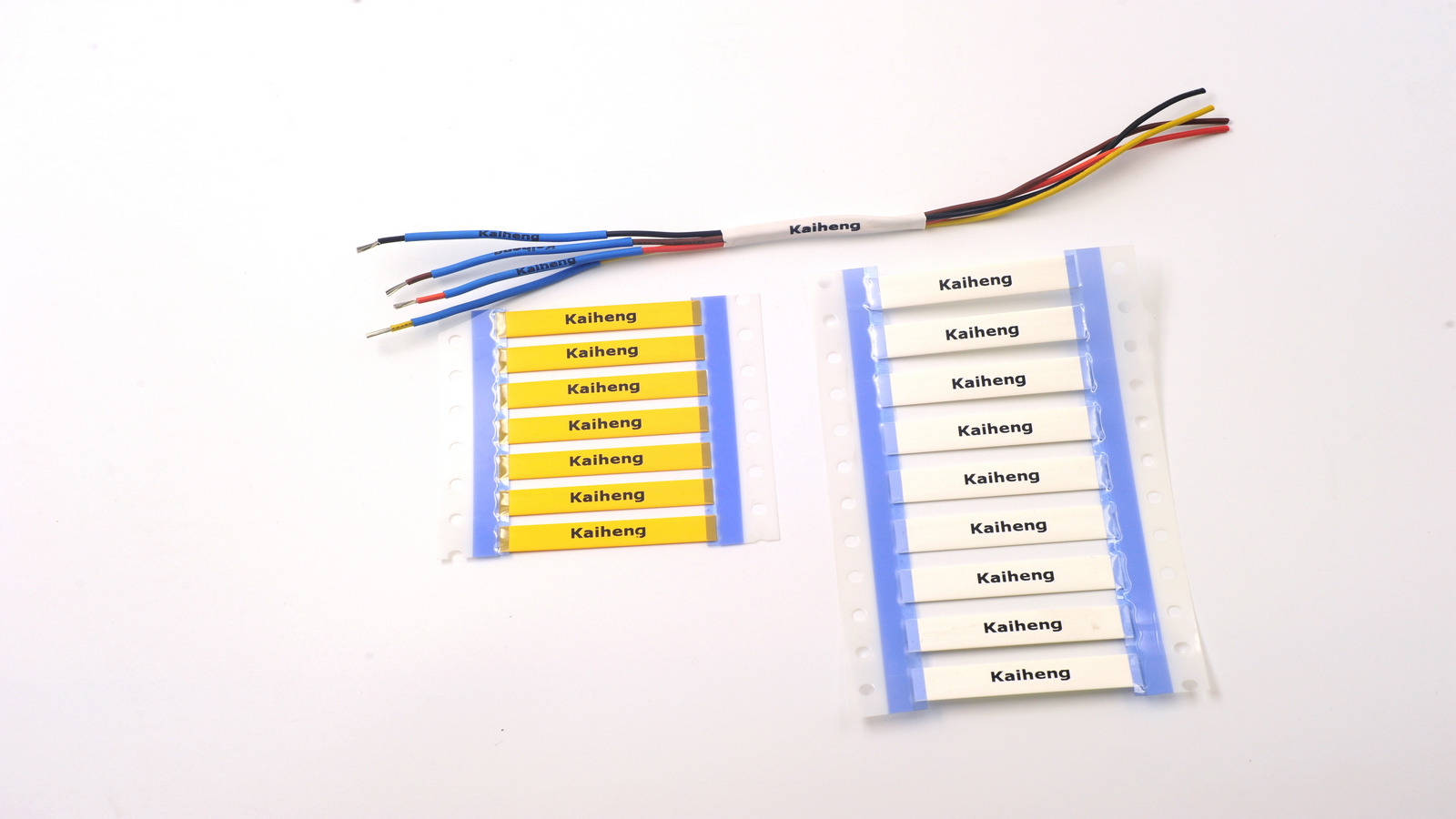

Heat-shrinkable identification marker sleeves



  • Application

KOSOO CTMS heat-shrinkable identification marker sleeves are designed to meet the requirements of high- performance identification of wire and cable, tools, hoses and equipment. Made from reliable flame-retardant polyolefin with outstanding properties, sleeves can also be used as electrical insulation. Marks are permanent after printing.



  • Features/Benefits

·Sleeves meet the requirements of AMS-DTL-23053/5 (materials and performance).

·Flexible, highly flame-retardant.

·Sleeves meet the print performance requirements of SAE-AS81531.

·Markers can also provide insulation and strain relief.

·Marks are permanent after printing; mark performance improves after shrinking.

·Free of PCBs, PCPs, polybrominated biphenyls (PBBs), polybrominated biphenyl oxides and ethers (PBBOs, PBBEs and PBDEs) and toxic heavy metal compounds, which are classified as environmentally hazardous substances. Conform to European RoHS environmental directive.

·Operating temperature range: -55℃~125℃

·Minimum shrink temperature: 70℃

·Minimum full recovery temperature: 110℃



  • Specifications/Standards

UL224 E214175 125℃ VW-1

AMS-DTL-23053/5

SAE-AS81531, MIL-STD-202


  • Specification values

Physical properties:

  Tensile strength                                10.4 MPa min.

  Elongation                                    200% min.

  Low temperature flexibility   (-55℃, 4hrs)         No cracking

  Heat shock                (250℃, 4hrs)         No cracking, dripping or flowing

Print performance:

  UL224                                       50 rubs, legible

  MIL-M-81531                                 50 rubs, legible

  MIL-STD-202                                 30 strokes, legible

Electrical properties:

  Dielectric voltage withstand  2.5KV, 60 sec         No breakdown

Dielectric strength                              19.7KV/mm min.

Volume resistivity                              1014Ω·cm min.

Chemical properties:

  Corrosion                                     No corrosion

Flammability  AMS-DTL-23053/5                Average burn time is less than 1 minute

Fluid resistance: (23℃, 24 hrs)                     Followed by print performancetests of

                                               SAE-AS81531





  • Product sizes

                                                                      mm/inch

Size

(inch)

Inside diameter

Recommended use range

As supplied (min.)

After recovery (max.)

3/32

2.4 (0.093)

0.8 (0.031)

0.9-2.0 (0.035-0.079)

1/8

3.2 (0.125)

1.0 (0.042)

1.1-2.7 (0.044-0.105)

3/16

4.8 (0.187)

1.6 (0.062)

1.8-4.1 (0.069-0.160)

1/4

6.4 (0.250)

2.1 (0.083)

2.3-5.5 (0.091-0.215)

3/8

9.5 (0.375)

3.2 (0.125)

3.5-8.0 (0.137-0.320)

1/2

12.7 (0.500)

4.2 (0.166)

4.7-10.8 (0.183-0.425)

3/4

19.1 (0.750)

6.35 (0.250)

7.0-16.3 (0.275-0.640)

1

25.4 (1.000)

8.5 (0.333)

9.3-21.6 (0.366-0.850)

1 1/2

38.1 (1.500)

19.1 (0.750)

21.0-33.0 (0.825-1.300)

2

50.8 (2.000)

25.4 (1.000)

27.0-48.0 (1.063-1.890)



  • Ordering information

·Standard color:White(-WH), yellow(-YL)

·Nonstandard color:Special colors can be available upon request.

·Nonstandard size

Special sizes are available upon request.

·Standard packaging:2 inch pieces or by spool

·Ordering description:Specify product type, size and color.
